Description
-
Built by John Deere in Greeneville, TN, USA ? Experience the Comfort of a John Deere
-

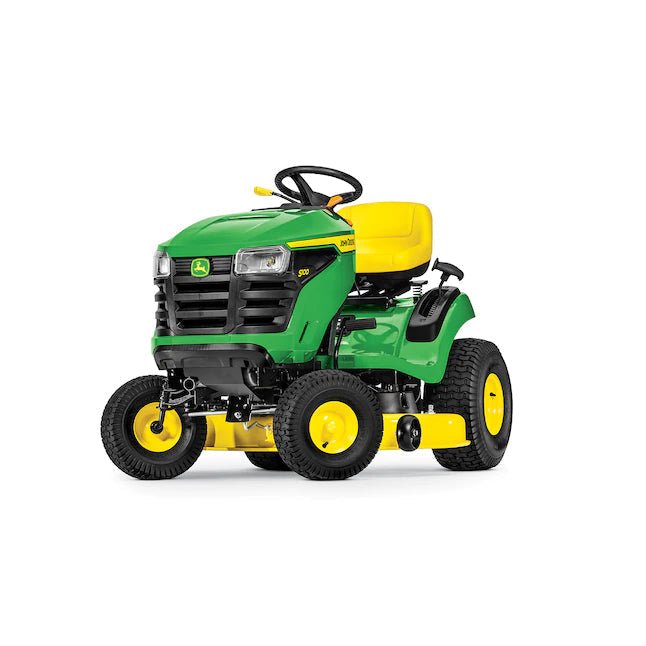

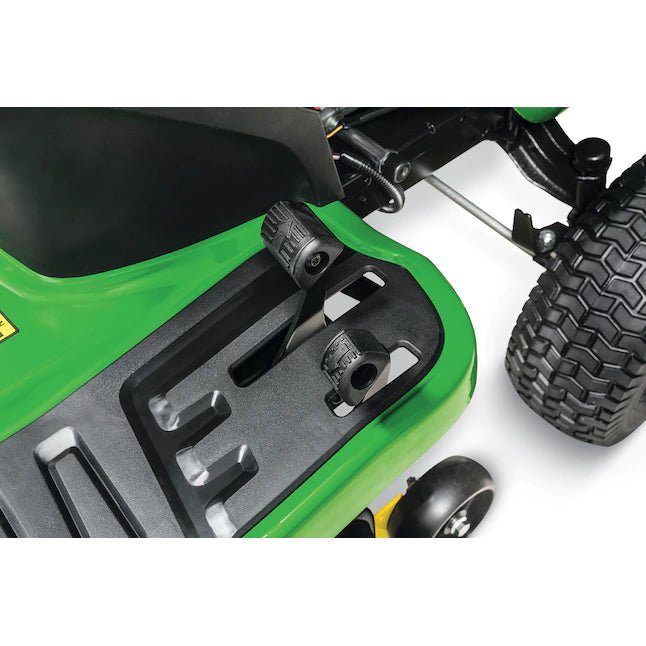

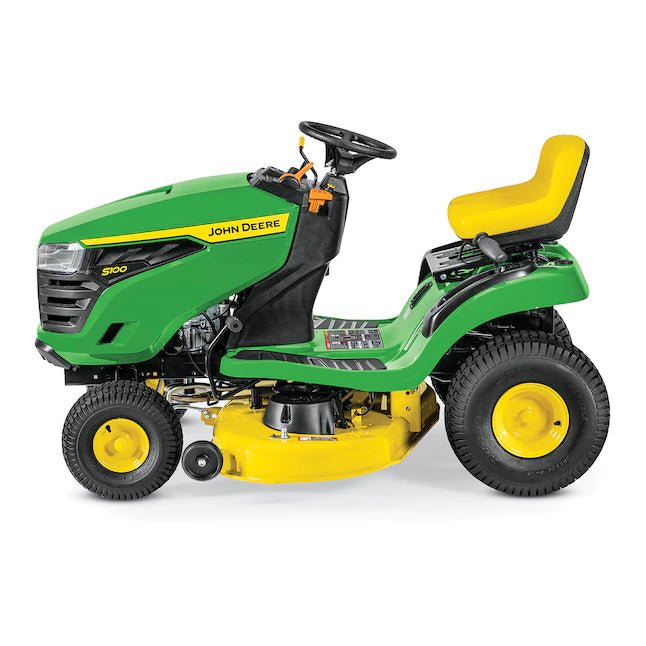

S100 features a hydrostatic transmission, side-by-side foot pedals, enhanced styling, adjustable controls and 11-in back seat
-
The 17.5-HP, single cylinder, John Deere engine has plenty of power to handle tough mulching, mowing and bagging conditions (coverage up to one acre)
-

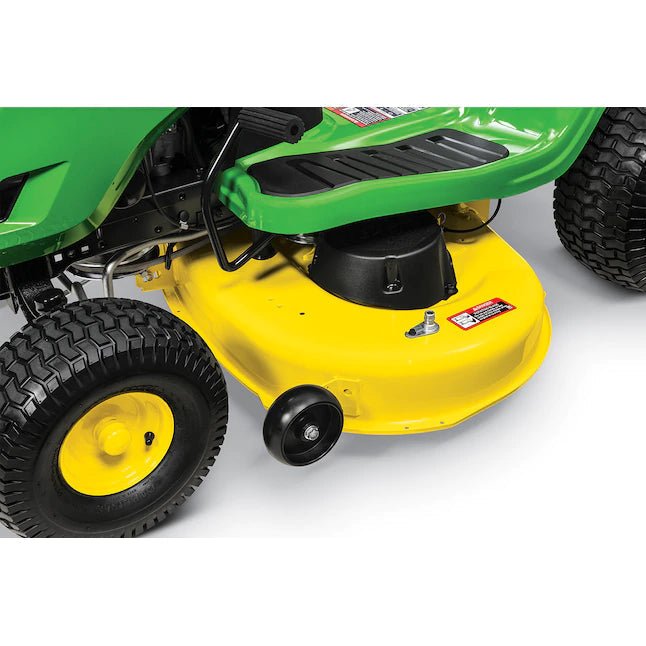

The 42-in two blade Edge? Cutting System has a deep deck design, 13-gauge steel and manual PTO blade engagement to provide superior performance and even cuts with 1-in to 4-in cut height selections in 1/4-in increments
-
Frame made of full-length welded, 12-gauge steel for reliability (front bumper optional)
-
Compatible parts and attachments: 42-in bagger (2593139), 42-in mulch cover (228462), front bumper (2593141), tow-behind cart (317783), lawn sweeper (538134), 46-in front blade (232032), 44-in snow blower (876847)
-
MowerPlus? Hour Meter Connector (1254810), lawn aerator (27064), canopy (623851), cover (227861), oil (48763), oil filter (228877), air filter (336262), 42-in mower blades (228460), 42-in mower belts (228871)
-
Hassle Free Ownership: John Deere 2-year/120-hour bumper to bumper warranty, local John Deere dealer support and a 10-Point Pre-Delivery Inspection prior to sale ? register your warranty at JohnDeere.com/warrantyregistration
| Engine power | 17.5 hp 13 kW |
|||
|---|---|---|---|---|
| Oil change | No-tools oil drain with replaceable filter | |||
| Engine manufacturer/model | 31R977 (M31) | |||
| Transaxle type | TLT200 hydrostatic, two-wheel drive | |||
| Transaxle control | Side-by-side pedals | |||
| Rear tires | 20?8-8 | |||
| Lift system type | Spring-assisted hand-grip lever | |||
| Cutting width | Edge? mower deck, 42 in. 107 cm |
|||
| U.S. warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | 17.5 hp 13 kW |
|||
|---|---|---|---|---|
| Displacement | 30.5 cu in. 500 cc |
|||
| Manufacturer/model | 31R977 (M31) | |||
| Type | Overhead valve, full-pressure lube, oil filter | |||
| Cylinders | One | |||
| Governor | Mechanical | |||
| Choke/speed control | Single lever with spring-return on choke | |||
| Cooling method | Air | |||
| Air cleaner | Cartridge | |||
| Oil change | No-tools oil drain with replaceable filter |
